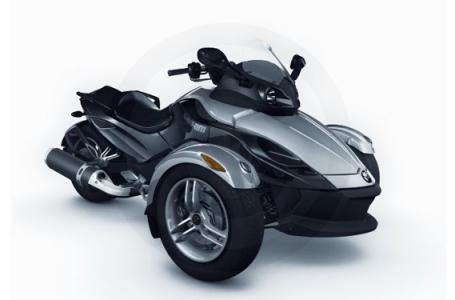

2009 Can-Am Spyder™ SM5
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Part motorcycle, part convertible, pure thrill, this roadster is a whole new riding sensation on pavement. Its revolutionary 3-wheel stance alters the chemistry between vehicle and asphalt—delivering what’s come to be known as the Y-Factor.


The Spyder roadster is available in three colors: Roadster Red, Full Moon Silver, and Millennium Yellow. There is also a matte black option, the “Phantom Black Kit,” which is an aftermarket BRP accessory option to give the Spyder roadster a blacked-out look.

    Engine
    • Manufacturer: BRP-Rotax
    • Type: 990 V-Twin
    • Displacement: 60.90 in3 (998cc)
    • Bore: 3.82 in (97 mm)
    • Stroke: 2.68 in (68 mm)
    • Cylinder: 2
    • Valves per cylinder: DOHC 4
    • Max output: 106 hp @ 8500 rpm (79 kW @ 8500 rpm)
    • Max torque: 77 lb-ft @ 6250 rpm (104.3 Nm @ 6250 rpm)
    • Compression ratio: 10.8:1
    • Ignition type: Electronic ignition with dual output coil
    • Lubrication: 5W40 BRP synthetic oil
    • Exhaust system: 2-into-1 with catalytic converter
    • Cooling: Liquid cooled
    • Injection: Multi-point EFI with 57 mm diameter throttle bodies
    Drive Train
    • Gear box: Sequential Manual 5-Speed (SM5) with transmission-based reverse
    • Final drive: 28/79 ratio final drive with Carbon-reinforced drive belt
    • Clutch: Wet, multi-plate, manual or electronic operation through a hydraulic piston
    Electric Equipment
    • Magneto: 500 Watt
    • Starter: Electric
    • Battery: Dry Cell, 12V, 21 Amp
    Geometry
    • Front suspension: Double A-Arm with anti-roll bar
    • Front suspension travel: 5.67 in (144 mm) with adjustable cam
    • Rear suspension: Swing-arm with monoshock
    • Rear suspension travel: 5.71 in (145 mm) with adjustable cam
    • Chassis type: SST Spyder (Surrounding Spar Technology)
    • Steering: DPS (Dynamic Power Steering)
    Tires & Wheels
    • Front tire: KR21 165/65R14
    • Front nominal pressure: 13-17 psi (89-117 kPa)
    • Rear tire: KR21 225/50R15
    • Rear nominal pressure: 26-30 psi (179-207 kPa)
    • Wheel size, front: Aluminum 14x5 (355x127)
    • Wheel size, rear: Aluminum 15x7 (381x178)
    Brakes
    • Type: Foot-actuated, fully integrated hydraulic 3-wheel braking system
    • Front braking system: 4 piston calipers with 10.2 in x 0.25 in (260 mm x 6 mm) discs
    • Rear braking system: Single-piston caliper with 10.2 in x 0.25 in (260 mm x 6 mm) disc
    • EBD: Electronic Brake Distribution
    • ABS: Anti-lock Braking System
    • Parking brake: Mechanical, foot actuated to the rear caliper
    Safety & Security
    • VSS: Vehicle Stability System
    • ABS: Anti-lock Braking System
    • TCS: Traction Control System
    • SCS: Stability Control System with Roll-Over Mitigation
    • DPS: Dynamic Power Steering
    • DESS: Digitally Encoded Security System
    Vehicle Dimensions & Weights
    • Dry vehicle weight: 699 lbs (317 kg)
    • Front storage capacity: 2,685 in3 (44 l)
    • Front max load capacity: 30 lbs (15.9 kg)
    • Total vehicle load allowed: 440 lbs (200 kg)
    • Fuel capacity: 6.6 US gal (25 l)
    • Oil capacity: 1.19 US gal (4.5 l)
    • Coolant capacity: 0.85 US gal (3.2 l)
    • GVWR: 1,188 lbs (540 kg)
    • Ground clearance: 4.5 in (115 mm)
    • Vehicle overall height: 45.1 in (1,145 mm)
    • Vehicle overall length: 105 in (2,667 mm)
    • Vehicle overall width: 59.3 in (1,506 mm)
    • Seat (top) height: 29 in (737 mm)
    • Wheel base: 68 in (1,727 mm)
    • Wheel track, front: 51.5 in (1,308 mm)
    • Type of gas: Unleaded, 87 octane minimum
    Features & Main Options
    • Color choices: Full Moon, Millennium Yellow, Roadster Red
    • Instrumentation: Dual analog and LCD w/speedometer, tachometer, electric fuel gauge, daily trip (A & B) meters, engine temperature, ambient temperature and gear position indicator. Information displayed in either metric or US Standards
    • Main options: Fog lights, xenon lights, mono seat cover, racing exhaust pipe, travel bags, cargo liner, passenger backrest, low and high windshields
    • Warranty: 2 years
    Phantom Black Body Kit
    • Completely changes the look of your vehicle
    • The flat black body work in conjunction with the stock gloss black panels provides a custom stealth look

    Specifications

    Engine
    Engine Type 990 V-Twin
    Displacement 60.90 in3 (998cc)
    Bore and Stroke 3.82 in (97 mm) x 2.68 in (68 mm)
    Cooling Liquid cooled
    Compression Ratio 10.8:1
    Fuel System Multi-point EFI with 57 mm diameter throttle bodies
    Ignition Electronic ignition with dual output coil
    Chassis
    Front Suspension Double A-Arm with anti-roll bar
    Front Brakes 4 piston calipers with 10.2 in x 0.25 in (260 mm x 6 mm) discs
    Front Tire KR21 165/65R14
    Rear Suspension Swing-arm with monoshock
    Rear Brakes Single-piston caliper with 10.2 in x 0.25 in (260 mm x 6 mm) disc
    Rear Tire KR21 225/50R15
    Dimensions
    Dry Weight 699 lbs (317 kg)
    Fuel Capacity 6.6 US gal (25 l)
    Wheelbase 68 in (1,727 mm)
    Transmission
    Transmission Sequential Manual 5-Speed (SM5) with transmission-based reverse
    Final Drive 28/79 ratio final drive with Carbon-reinforced drive belt
    General
    Colors Full Moon, Millennium Yellow, Roadster Red; Optional: Phantom Black Kit
    Warranty 2 years

    Compare Models

    		 Print








    Year 2009
    Manufacturer Can-Am
    Model Spyder™ SM5
    Style Sport
    MSRP* $16,199.00
    Chassis
    Front Suspension Double A-Arm with anti-roll bar
    Front Brakes 4 piston calipers with 10.2 in x 0.25 in (260 mm x 6 mm) discs
    Front Tire KR21 165/65R14
    Rear Suspension Swing-arm with monoshock
    Rear Brakes Single-piston caliper with 10.2 in x 0.25 in (260 mm x 6 mm) disc
    Rear Tire KR21 225/50R15
    Dimensions
    Dry Weight 699 lbs (317 kg)
    Fuel Capacity 6.6 US gal (25 l)
    Wheelbase 68 in (1,727 mm)
    MPG
    Seat Height
    Trail
    Rake
    Engine
    Engine Type 990 V-Twin
    Displacement 60.90 in3 (998cc)
    Bore and Stroke 3.82 in (97 mm) x 2.68 in (68 mm)
    Cooling Liquid cooled
    Compression Ratio 10.8:1
    Fuel System Multi-point EFI with 57 mm diameter throttle bodies
    Ignition Electronic ignition with dual output coil
    General
    Speedometer
    Tachometer
    Odometer
    Colors Full Moon, Millennium Yellow, Roadster Red; Optional: Phantom Black Kit
    Warranty 2 years
    Transmission
    Transmission Sequential Manual 5-Speed (SM5) with transmission-based reverse
    Final Drive 28/79 ratio final drive with Carbon-reinforced drive belt
